The Organ

Builder

Hinners Organ Company, Pekin, Illinois (1919)
ID No. 23782

Status and Condition

Fully operational and used weekly during Sunday Worship.

Technical Details

Slider chests. Mechanical key action. Mechanical stop action.

Two manuals. 3 divisions. 16 stops. 10 registers. 10 ranks. 567 pipes. Manual compass is 61 notes. Pedal compass is 30 notes.

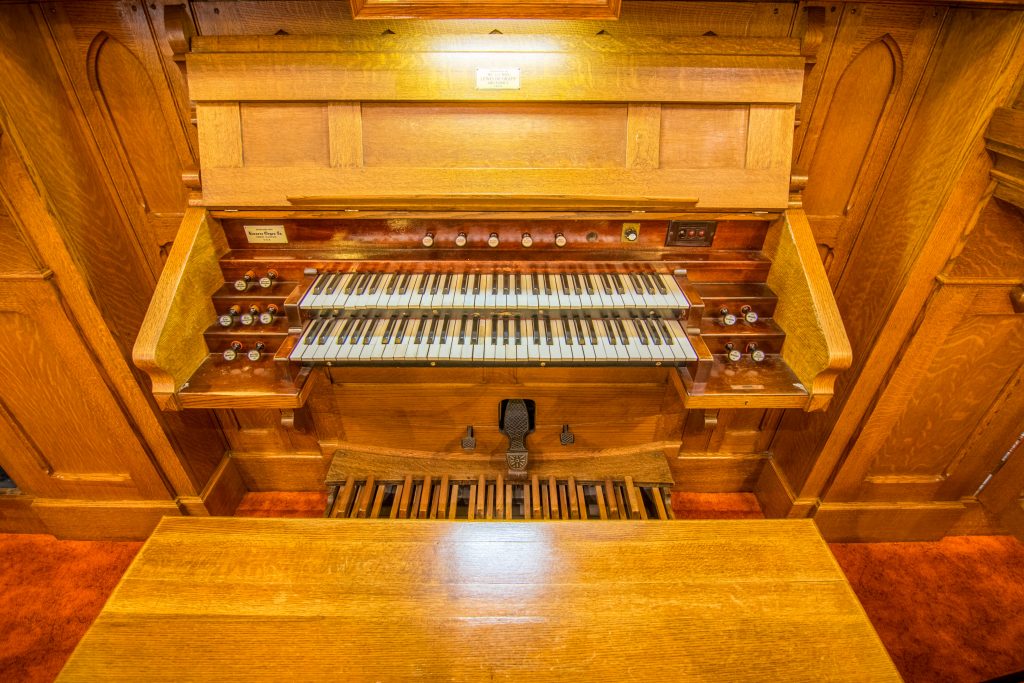

The organ is in center chambers at the front of the room with visible façade pipes or case front. Traditional style console with a keyboard cover that can be lifted to form a music rack. There is an attached keydesk en fenêtre.

Drawknobs in horizontal rows on terraced/stepped jambs. Balanced swell shoes/pedals, standard AGO placement. Combination Action: Fixed mechanical system.

Hinners Organ, 1919

Stoplist and Description

Swell	                 Great                 Pedal
Violin Diapason 8'     Open Diapason 8'      Bourdon 16'
Stopped Diapason 8'    Melodia 8'            Lieblich Gedackt 16'
Oboe (reedless) 8'     Dulciana 8'
Echo Salicional 8'     Principal 4'
Flute Harmonique 4'

Couplers:
Great to Pedal; Swell to Pedal; Swell to Great; Swell Octave (4') to Great

Two combination levers for the feet: mp and 'full organ'

Tremulant

Slider chests with mechanically operated pallets.  Offsets and the
Pedal Bourdon 16' are pneumatic.

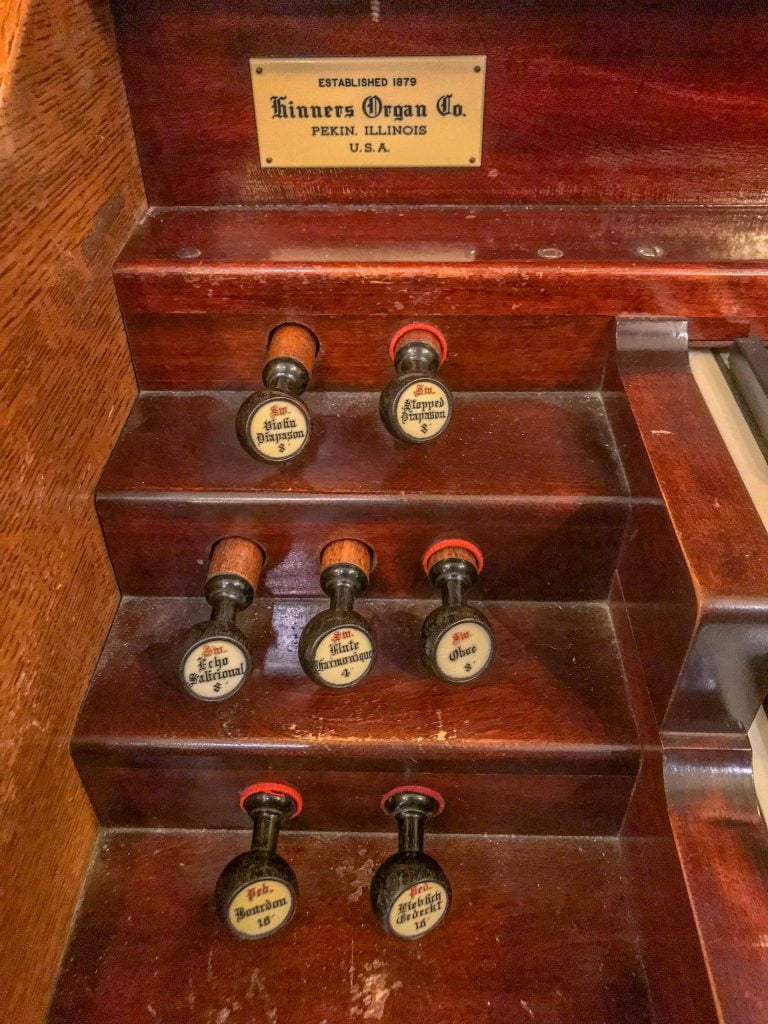

Speaking stops controlled by drawknobs on terraced jambs. Couplers and
tremulant controls are drawknobs above the top manual.

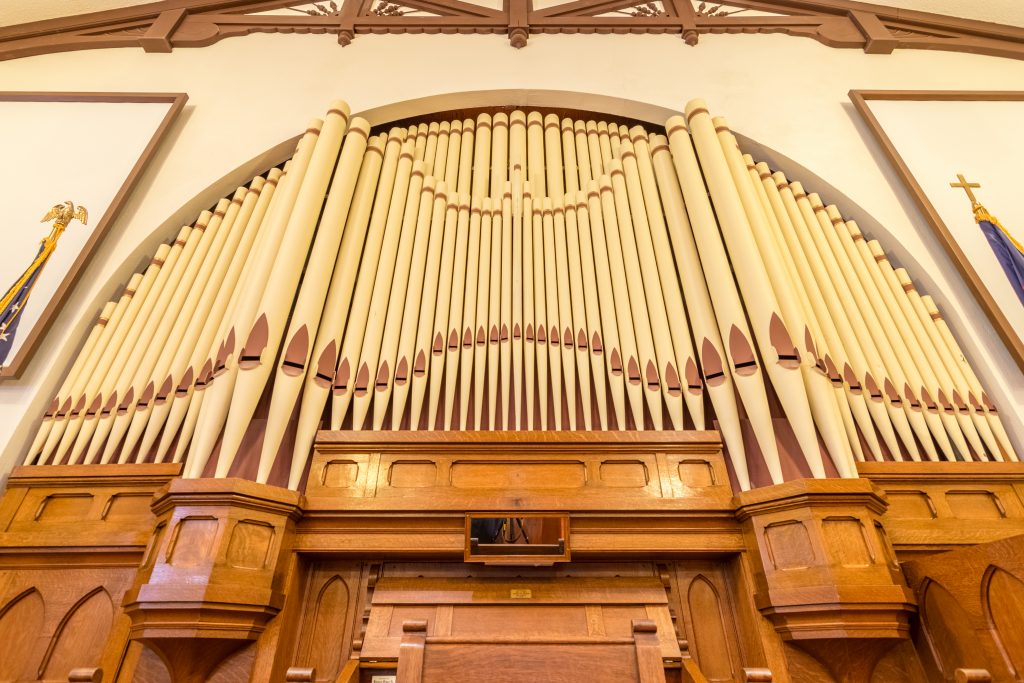

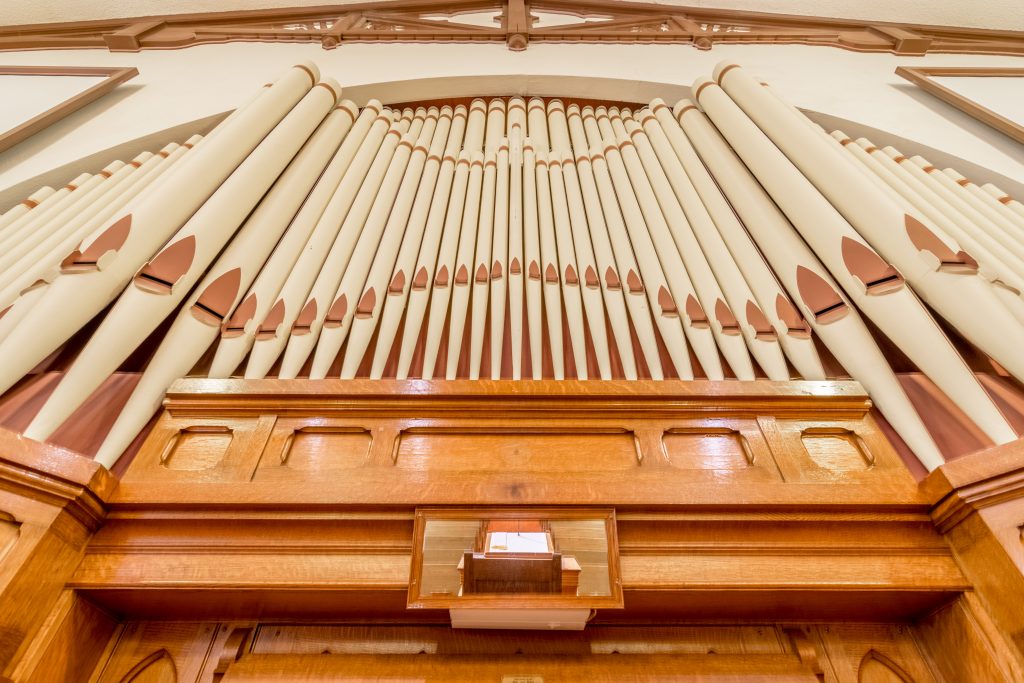

A large arch pierces the front wall of the sanctuary which is filled
with the console and woodwork to the floor below the impost, above
which approximately 12 façade pipes from the Great Open Diapason 8' and
twelve from the Principal 4' among other 'dummies' and a high row of
'canisters' to complete the enclosure of the arch.  Behind the façade

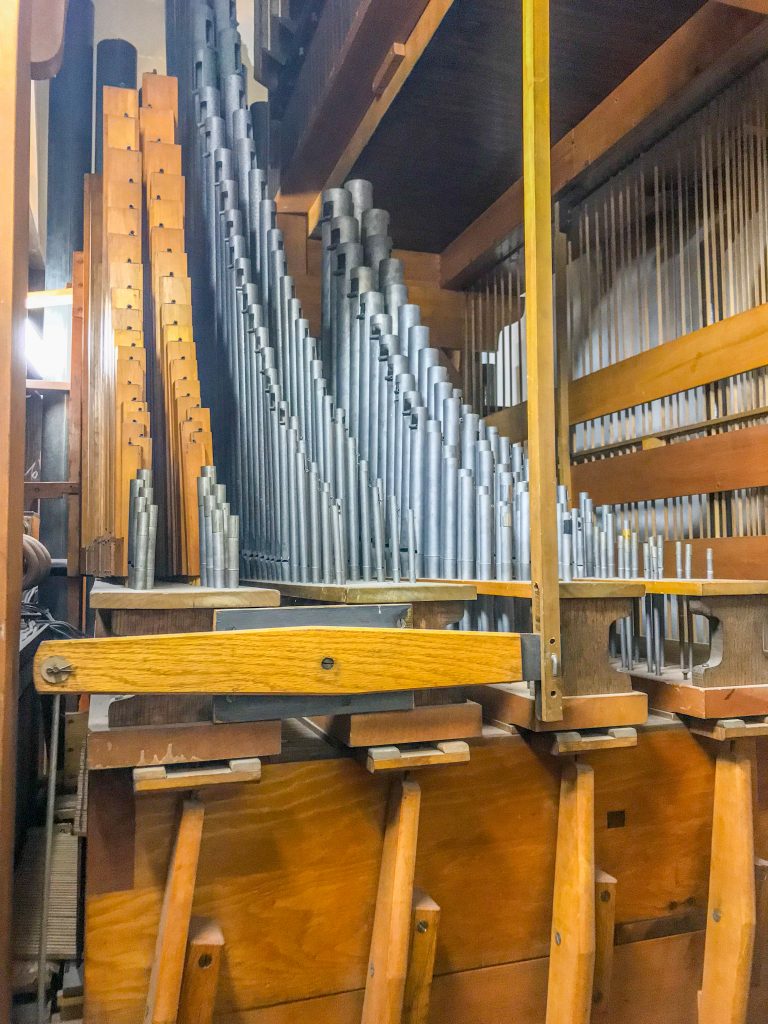

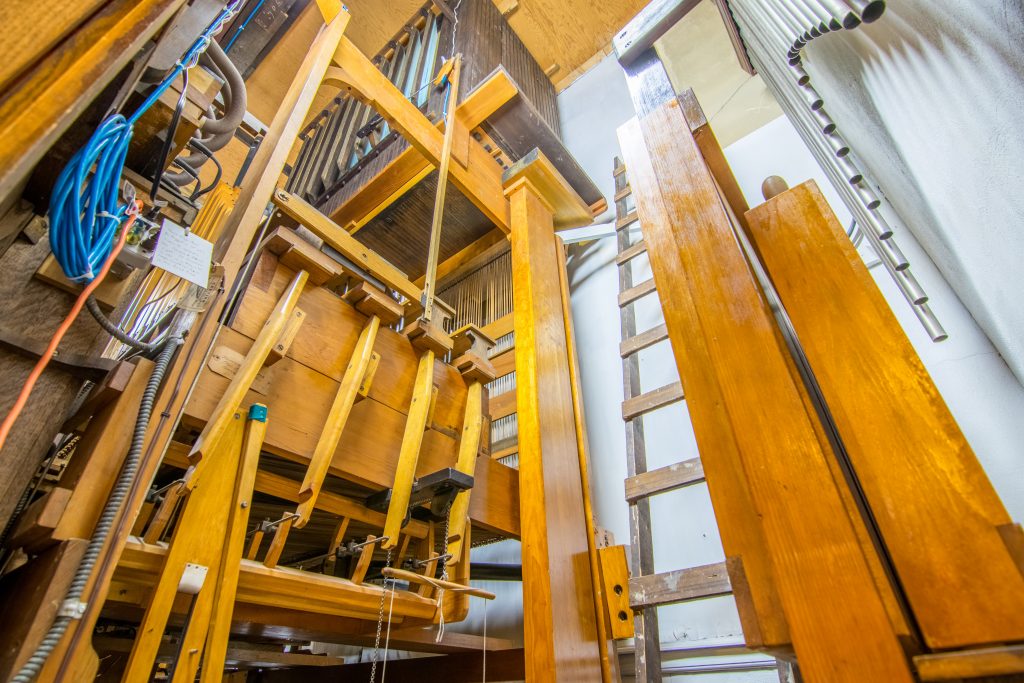

is a room approximately 7' x 24' housing the action, chests, and pipes.

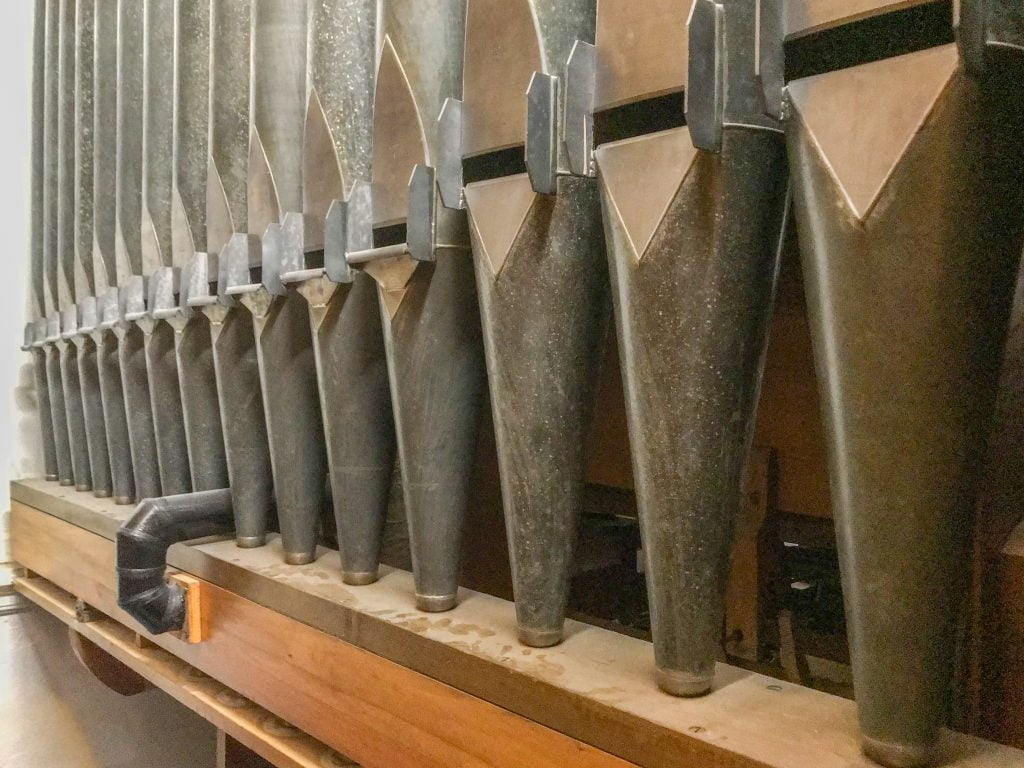

The Swell enclosure  contains pipes only up to four feet in length. The
Oboe begins at tenor C, the bottom octave of the Echo Salicional has
stopped metal pipes, and the bottom octave of the Violin Diapason is
offset outside the swell box

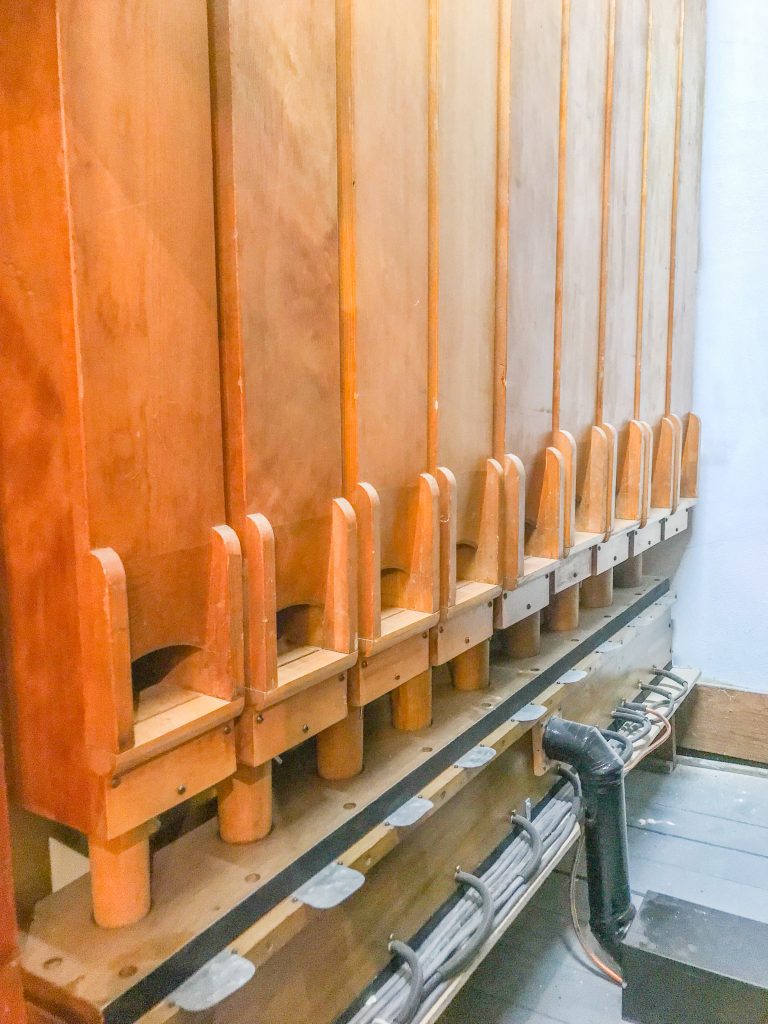

The Pedal Lieblich Gedackt 16' uses the same pipes as the Bourdon 16'
on reduced wind.

This instrument is in regular use. A multi-staged restoration is being
done by the Berghaus Organ Company. Stage one was completed in 2005,
when it was thoroughly cleaned and inspected; damaged or missing key
coverings were replaced, the original wind pressure was restored, action
repairs to correct dead notes were accomplished, and a thorough tuning
at the original pitch (435) was completed.  The pedal and off-set blast
actions have also been releathered.

Future restorative stages will include repacking the stoppers of the
Bourdon and Stopped Diapason and bottom octaves of the Echo Salicional
and Melodia, and releathering the reservoir. At present, the reservoir
has its original, nearly 100-year-old leather, including the leather on the
feeder bellows for hand pumping -- still functional, though long since
having fallen into disuse because of the addition of an electric motor
driven-blower.  The leather seems brittle, but has never leaked. A
combination of conservative maintenance and some 'benign neglect' have
conspired to preserve this instrument in remarkably excellent condition.
